STAX - SRM-D10
Designed in
Japan
1 Year of
Warranty
Ideal for
Audiophiles
Best Suited for
Portable Use
Metal
Build
DESCRIPTION
THE ULTIMATE ELECTROSTATIC DAC/AMP, CONNECT EASILY
Experience Hi-Res audio with the SRM-D10. The specially tuned DAC supports up to DSD128 (5.6MHz) and PC 384 kHz playback with an XMOS USB interface. The superior built-in amplifier is resistant to high voltage and offers a great performance. With its 3.5mm analogue input and MicroUSB digital input, the SRM-D10 makes connecting to your PC, Mac, DAP or just about any other audio player easy. The 5-pin PRO bias STAX Earspeaker output lets you connect to your favourite STAX Earspeaker and enjoy world-class audio in no time.
CARRY IT ANYWHERE, DURABILITY WITH STYLE & LISTEN FOR LONG
Now you do not need to be tied down to one spot just to listen to pure audio. The SRM-D10 is the very first electrostatic driver in the history of STAX that can be carried around. This high-quality amplifier can drive your favourite STAX Earspeakers when on-the-go. For additional durability and style, the SRM-D10 features an aluminium chassis. This case has been treated with multiple processes for a better shielding and velvety texture. Say goodbye to heaps of wires and wall outlets with the SRM-D10. The built-in rechargeable battery gives you 4.5 hours of battery life when using the analogue input and 3.5 hours of battery life when using the digital input.
SPECS
| FREQUENCY RESPONSE | 20Hz – 40KHz (+0dB,-3dB) |
| GAIN | 53dB (450 times) |
| HIGH HARMONIC DISTORTION | 0.025% / 1KHz-10KHz |
| INPUT IMPEDANCE | 10 KΩ(analog input) |
| MAX. OUTPUT VOLATGE | 200Vr.m.s / 100Hz-10KHz |
| STANDARD BIAS VOLTAGE | DC 580V |
| SUPPLY VOLTAGE | DC 14V |
| VOLTAGE | 100-240V/50-60HZ |
| BATTERY OPERATING TIME | 4.5hour(analog input) / 3.5hour(digital input) |
| RATED INPUT LEVEL | 230mV (100V output) |
| MAX. INPUT LEVEL | 10V (minimum volume in analog input) |
| RECOMMENDED OPERATING TEMPERATURE | 0-35°C, <90% RH (No condensation) |

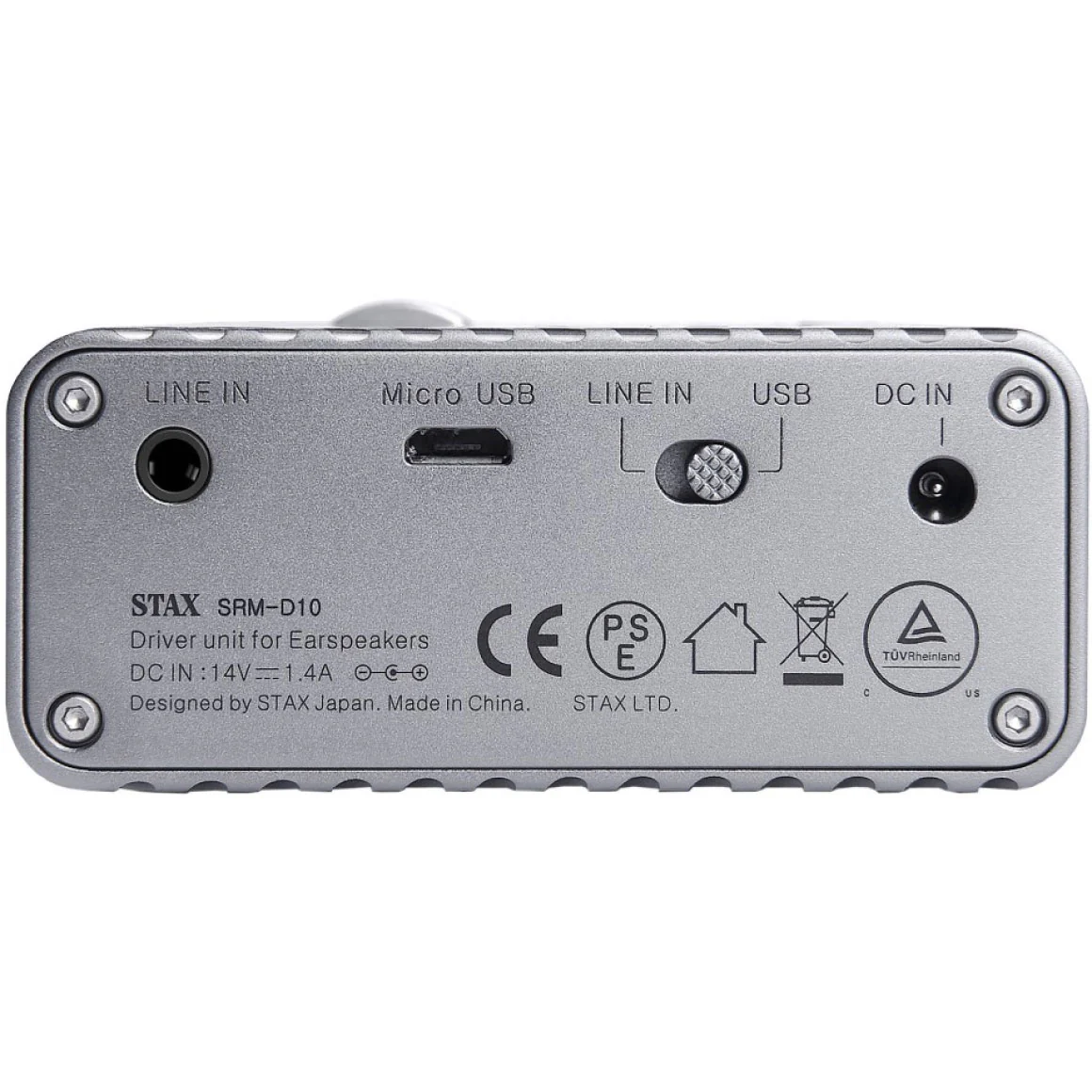

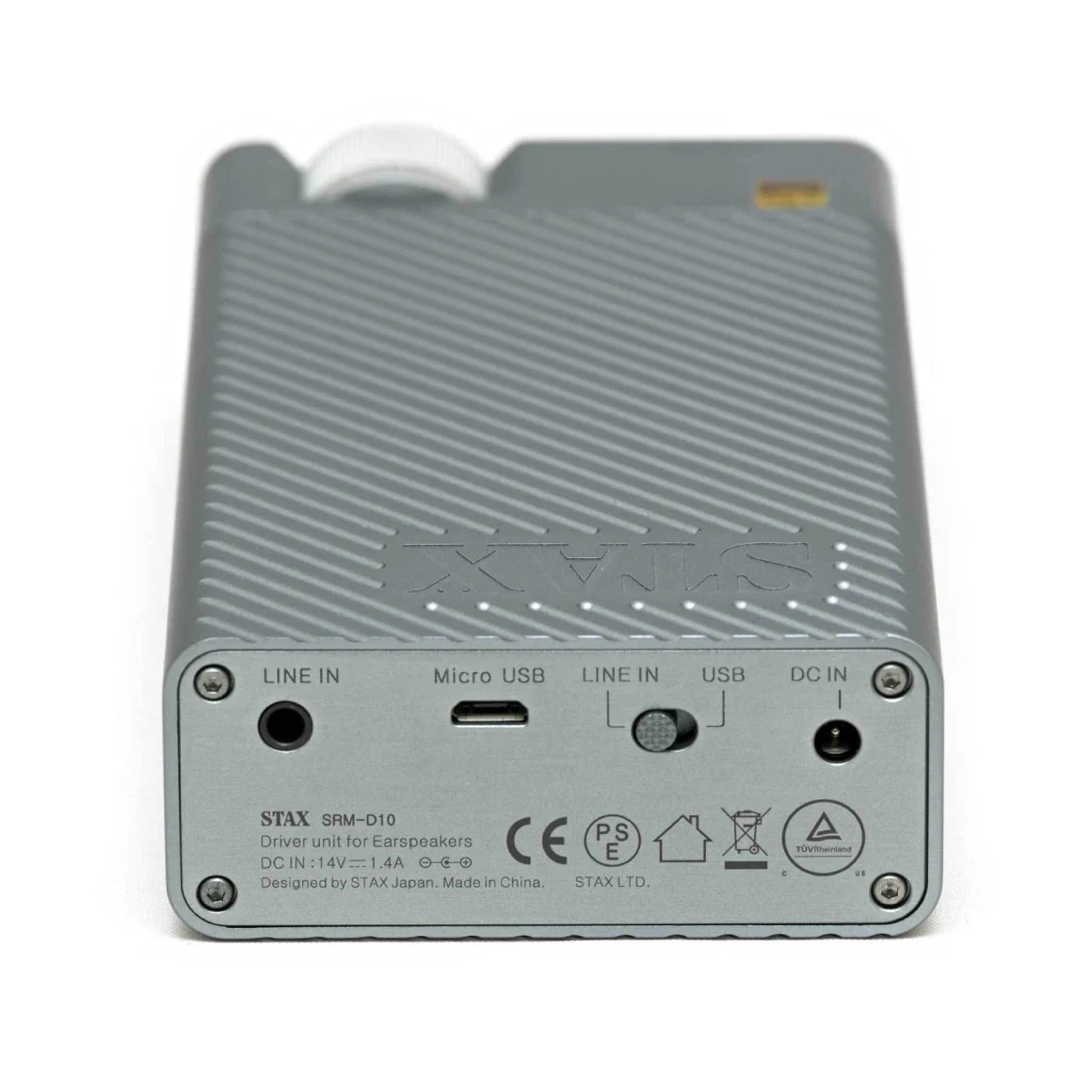

| SIGNAL INPUT | MicroUSB digital input, 3.5mm analog input |
| POWER CONSUMPTION | 6.4W (USB input)、5W (analog input) |
| DIMENSIONS | 75W×32H×141Dmm |
| WEIGHT | 450g |
| BOX CONTENTS | 1. STAX SRM-D10 |
WARRANTY AND MEDIA REVIEWS
1 Year Warranty
Don't sweat it, this STAX SRM-D10 comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about STAX's warranty in India.
"A versatile model, the D10 brings high-performance audio not only to PCs and Macs but also outdoors and on the move. Compact high-end package that will take your music files to another level."
Read More
"However, its Stax, it is portable and it already sounds and looks more refined than the only other portable stats amp I have heard to date."
Read MoreOriginal: $794.91
-70%$794.91
$238.47Product Information
