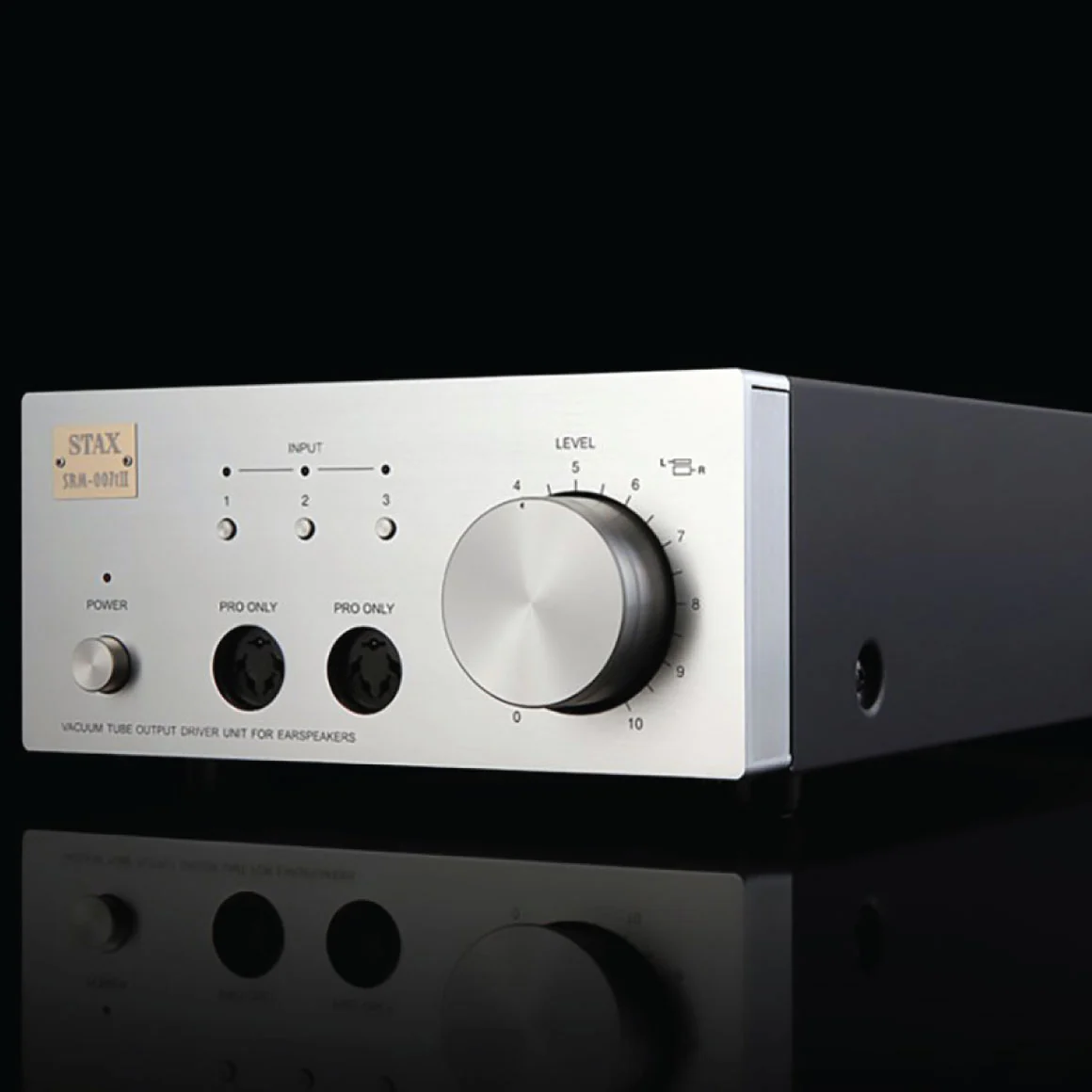

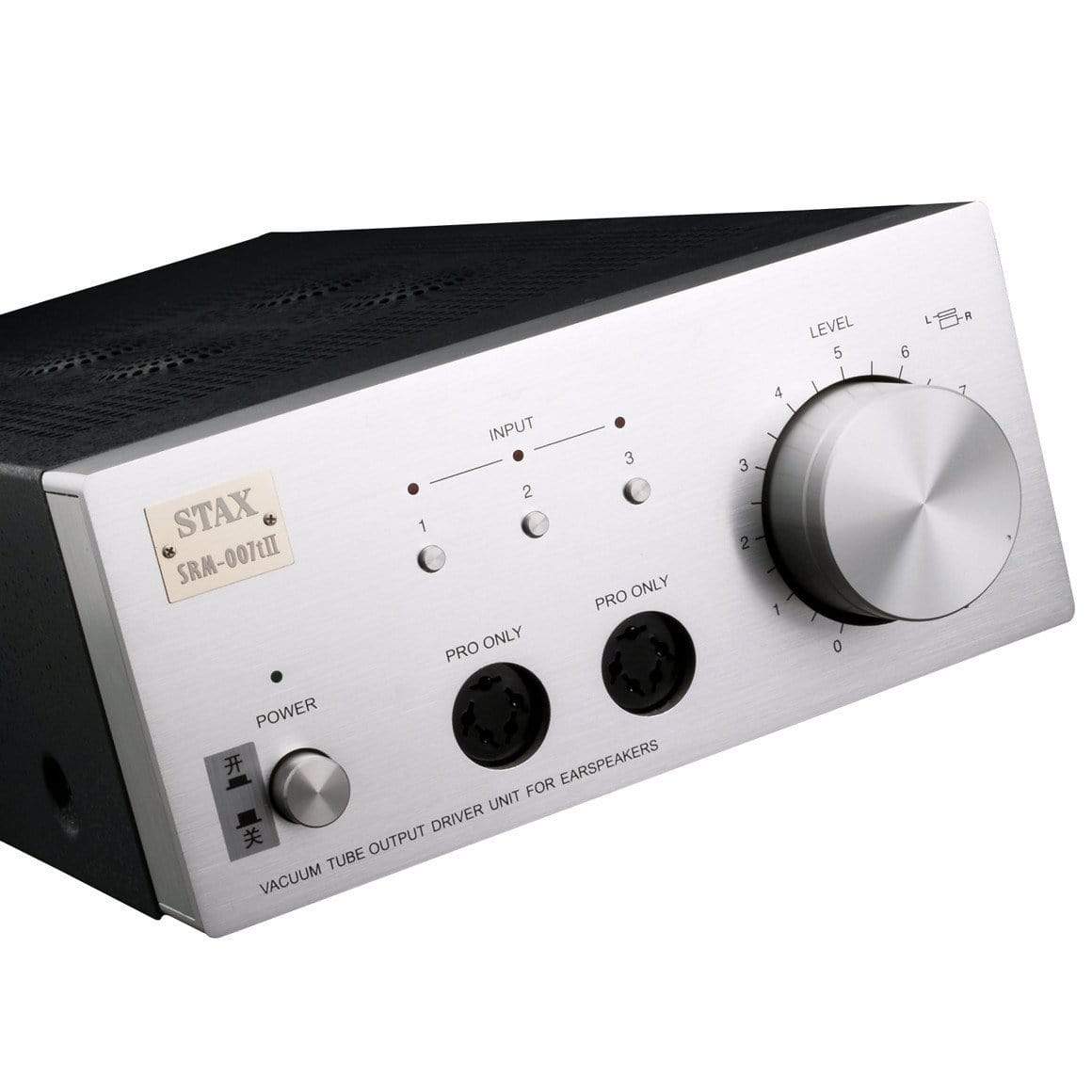

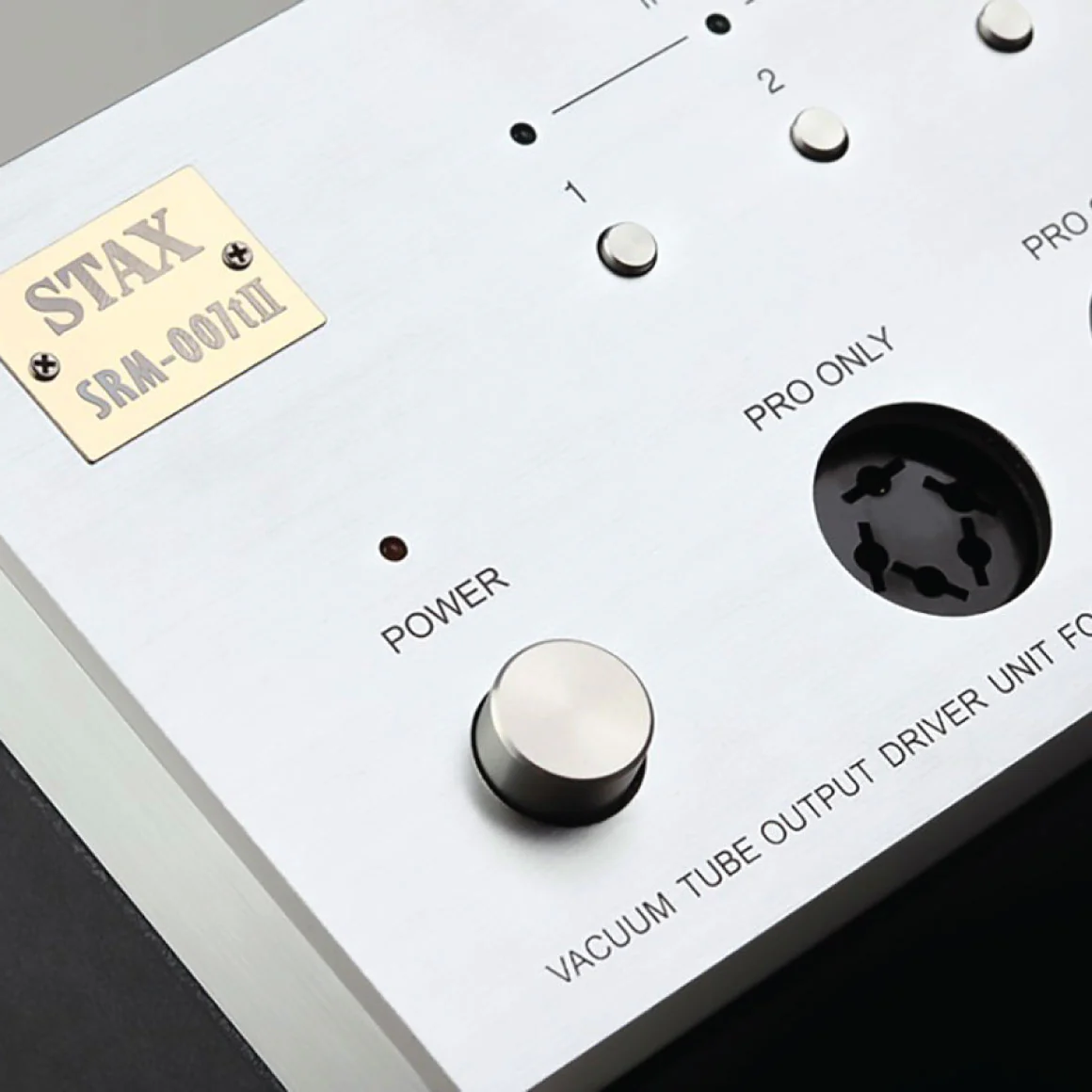

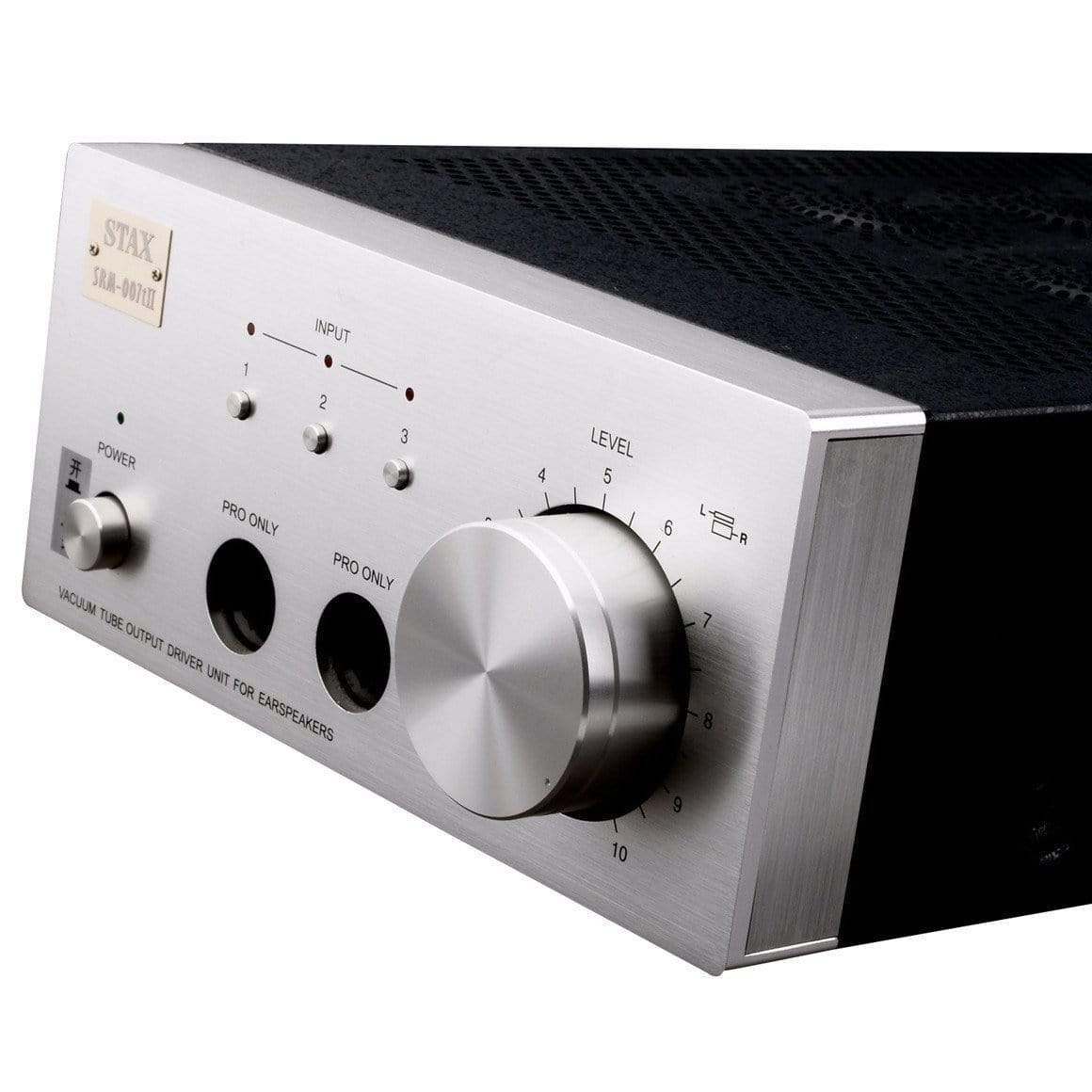

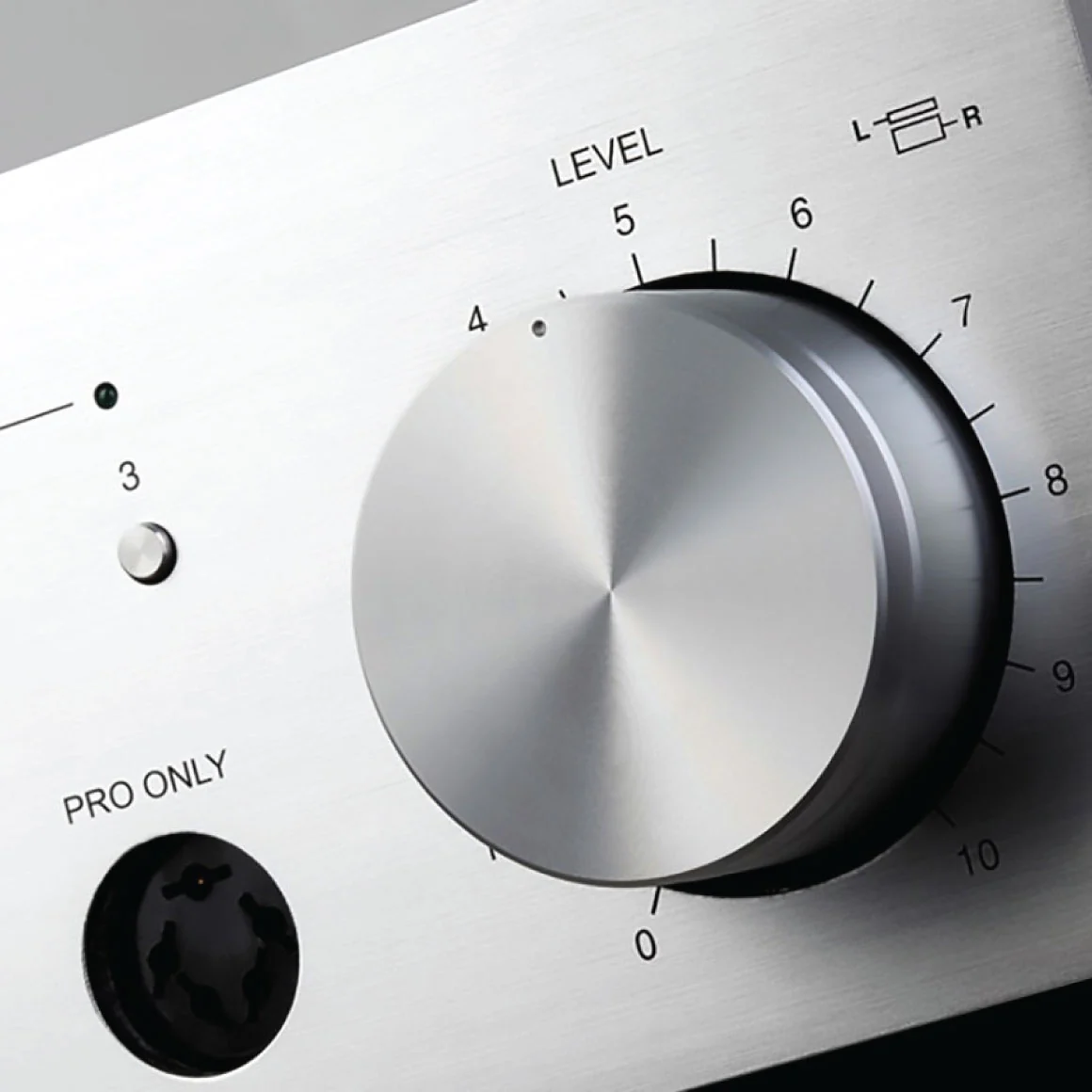

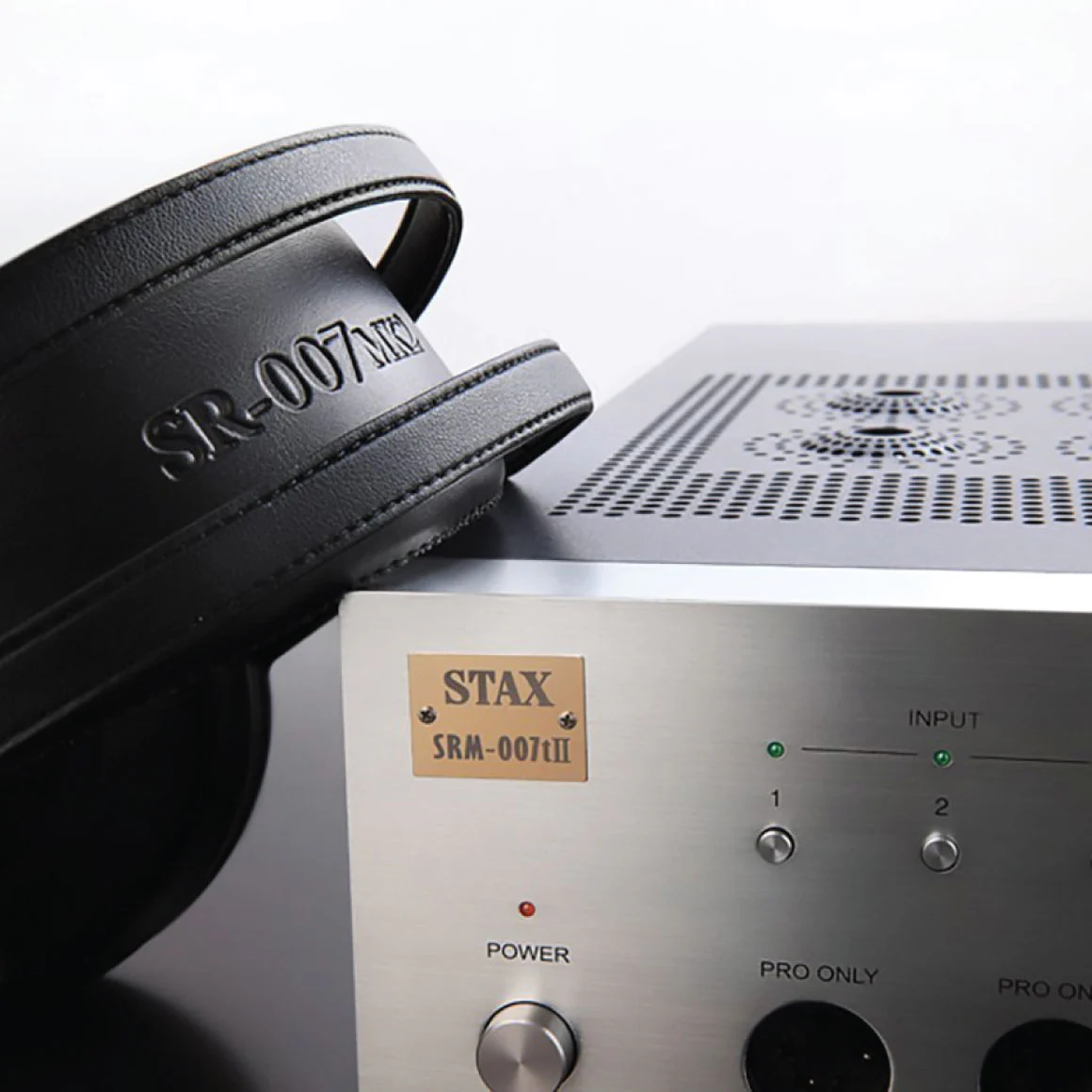

STAX - SRM-007tII

STAX - SRM-007tII

Designed in
Japan

1 Year of
Warranty

Ideal for
Audiophiles

Ideal for
Indoor Use

Metal
Build

DESCRIPTION

PURE BALANCE AMPLIFIER, OUTSTANDING CLEAR SOUND & SUPPORTS HIGH-RESOLUTIONS FILES

Unlike other amplifiers, the SRM-007tll consists of a pure balance amplifier in which the XLR balance input does not have to pass through a transformer or inversion amplifier. It is the only system that makes it possible to listen to sound in the most ideal manner permitted by the balance system. The use of on-inductive coil resistance realises straightforward properties that take advantage of the fitted vacuum tubes and audio with outstanding quality and high level of clarity. STAX has ensured that SRM-007tll has put in great efforts into the circuit constants. Thus, it achieves a higher grade of reproductivity for SACD and other new generation audio formats.

Headphone-Zone-STAX-SRM-007tII
Headphone-Zone-STAX-SRM-007tII
Headphone-Zone-STAX-SRM-007tII

SPECIALLY DESIGNED FOR STAX ‘EARSPEAKERS’, ULTRA THIN POLYMER FILM & XLR AND ALL ANALOG VOICE INPUTS

The SRM-007tll has been exclusively designed for earspeakers characterized by their wide high dynamic range and outstanding operating features. Thus, pair your headphones with the SRM-007tll and enjoy the best that the world of music has to offer. Fitted with an ultra-thin polymer film, the SRM-007tll, lets you listen to music with an unprecedented response and a high degree of resolution. Experience your music in its most natural form. The high-quality sound quadruple volume unit makes it possible for XLR input as well as all kinds of line-level analogue voice inputs.

Headphone-Zone-STAX-SRM-007tII
Headphone-Zone-STAX-SRM-007tII
Headphone-Zone-STAX-SRM-007tII

SPECS

AUDIO SPECIFICATIONS
FREQUENCY RESPONSE DC to 100,000Hz +0,-1.5dB w/ SR-007 or SR-404
HIGH HARMONIC DISTORTION Max. 0.02% (with 1kHz, 100V r.m.s. )
GAIN 54dB (x500)
INPUT IMPEDANCE 50Kohm, 50kohm x 2 during balance
MAX. OUTPUT VOLATGE 340V r.m.s. (1kHz)
STANDARD BIAS VOLTAGE PRO 580V x 2
POWER VOLTAGE FREQUENCY 117V (50Hz / 60Hz)
CONTROLS & CONNECTIVITY
TYPE Vacuum tube output stage Low noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
VACUUM TUBE 4 (6FQ7 / 6CG7)
RATED INPUT LEVEL 200mV / 100V Outputs
MAX. INPUT LEVEL 30V r.m.s. at min. volume
INPUT TERMINALS 3 ( XLR x 1, RCA x 2) with 1 RCA parallel out
POWER CONSUMPTION 55W
TEMPREATURE AND HUMIDITY 0 to 35ºC / 90% max. without condensation
DESIGN & BUILD
COLOR Silver
DIMENSIONS 7.7 (W) x 4.1 (H) x 16.5 (D) in
WEIGHT 10.4lbs
IN THE BOX
BOX CONTENTS 1. STAX SRM-007tII

FAQs

WARRANTY AND MEDIA REVIEWS

1 Year Warranty

Don't sweat it, this STAX SRM-007tII comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about STAX's warranty in India.
