STAX - SRM-D50
Designed in
Japan
1 Year of
Warranty
Ideal for
Audiophiles
Best Suited for
Portable Use
Metal
Build
DESCRIPTION
THE BEST AMP/DAC, HIGH-QUALITY SOUND

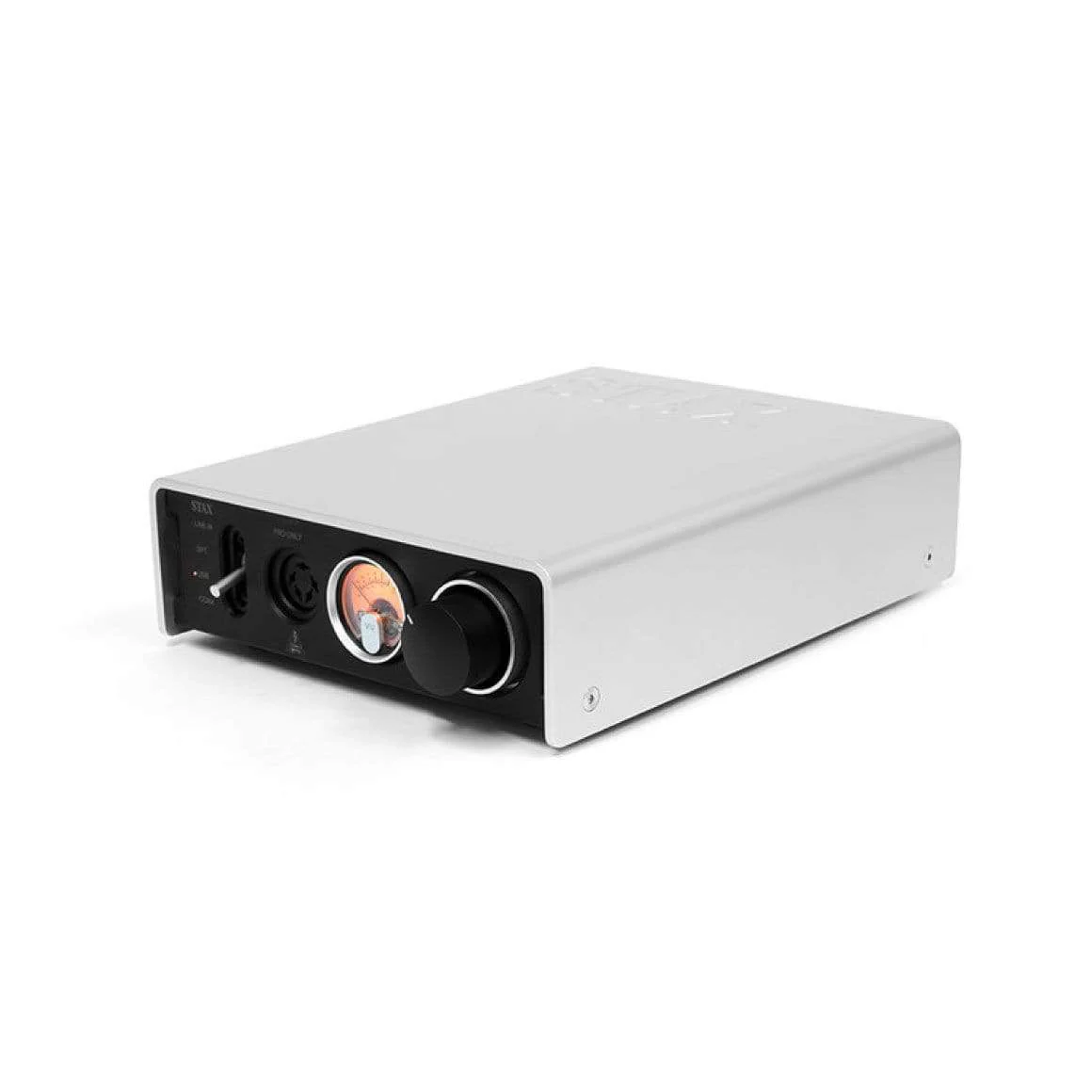

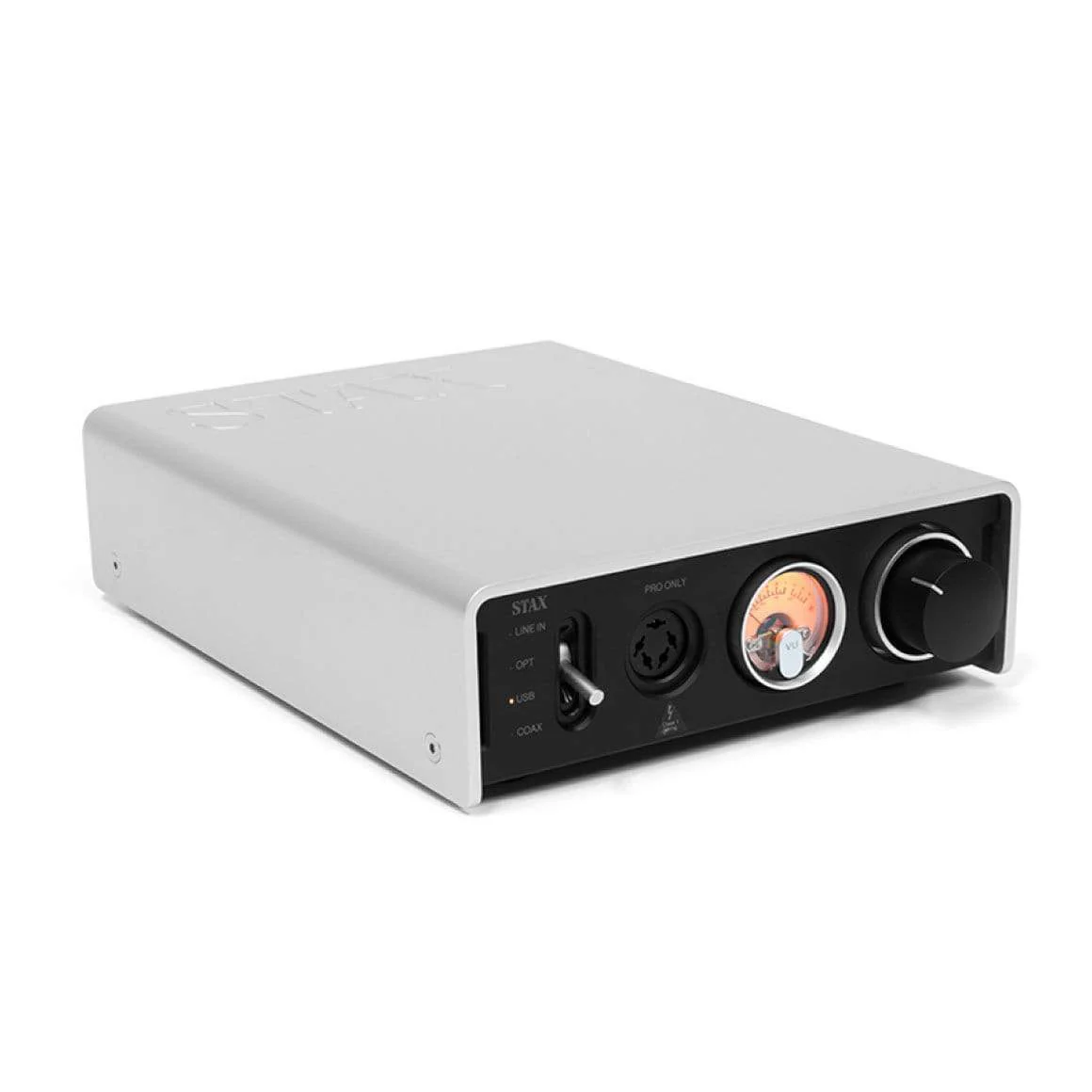

The STAX SRM-D50 is a desktop amplifier/DAC for STAX electrostatic headphones. It has an ESS ES9018 DAC chip. This coupled with a TI OPA1642 ultra-low distortion op amp gives you a bit-correct signal representation. The SRM-D50 supports high-resolution audio up to PCM 32/384KHz or DSD 5.6. The R core power transformer offers less leakage flux.
DURABLE & COMPACT, CONNECT EASILY

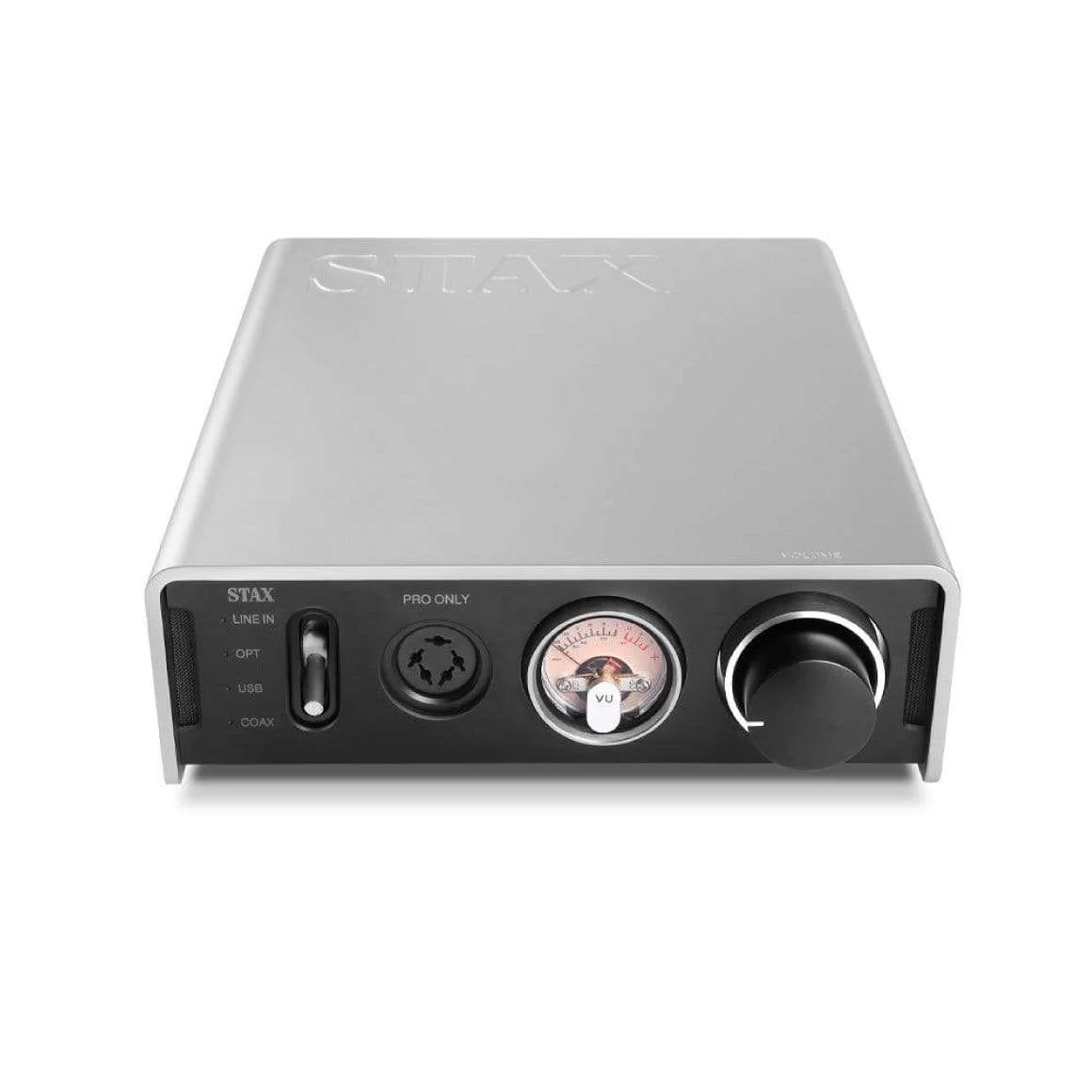

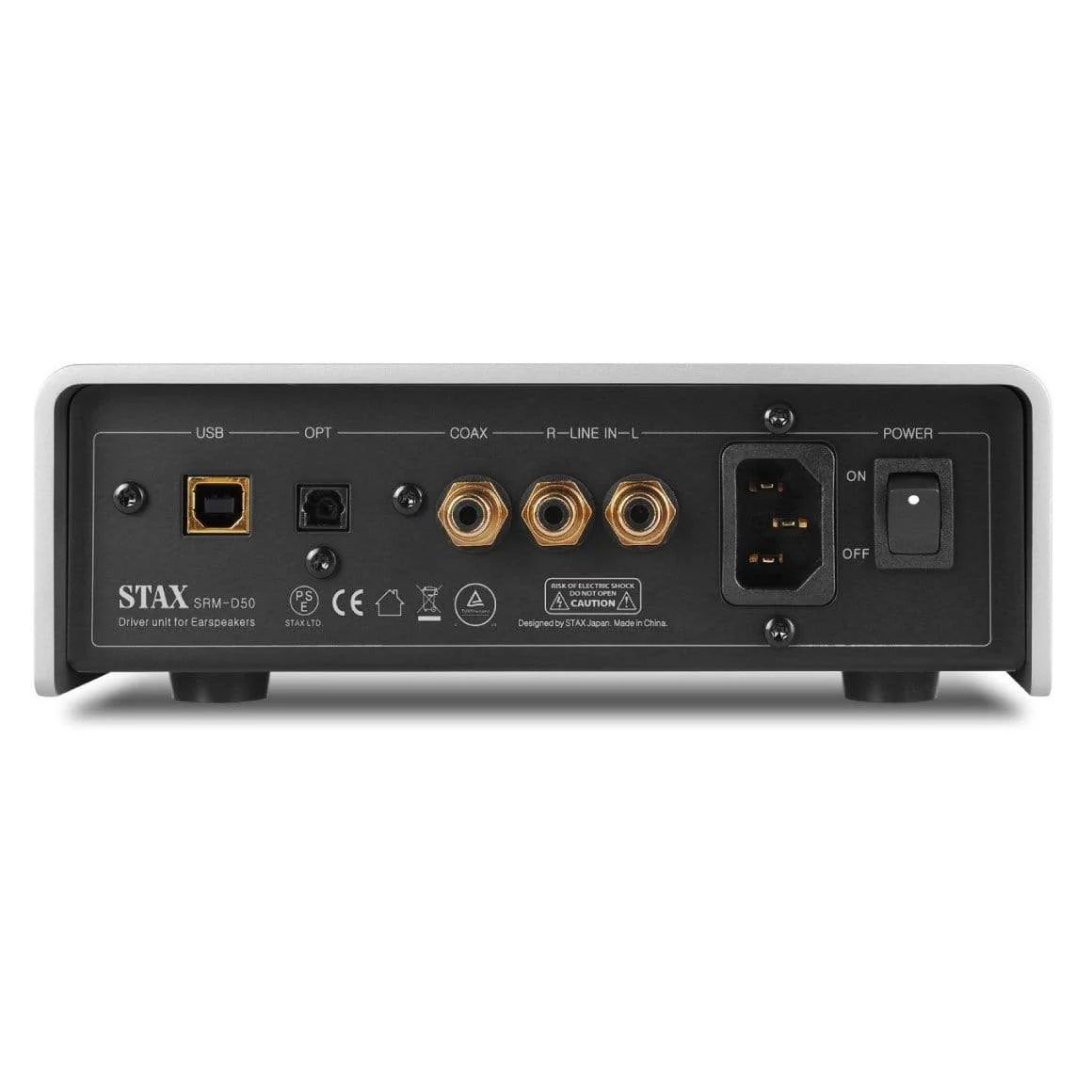

The SRM-D50 has been designed to be super-durable. The non-magnetic aluminium chassis is 4mm thick so that it is more robust. At the same time, it is also quite compact to easily fit on a table. The chassis contains one 5-pin output for your STAX Earspeaker and a VU meter. It also consists of various kinds of digital inputs like optical, USB and coaxial so that you can use your favourite source along with the SRM-D50.
SPECS
| FREQUENCY RESPONSE | 20Hz - 40kHz (+/-3dB) |
| HIGH HARMONIC DISTORTION | 0.025% or less/1kHz-10kHz /When use with SR-L series |
| MAX. OUTPUT VOLTAGE | 400V RMS (1130Vp-p) |
| BIAS VOLTAGE | DC 580V |
| GAIN | 59 dB |
| INPUT IMPEDANCE | 20kΩ (RCA) |
| RATED INPUT LEVEL | 130mV r.m.s |
| MAXIMUM INPUT LEVEL | 30V/ RCA, at minimum volume |
| DIGITAL INPUT | USB (type B) ×1、TOSLINK Optical ×1、COAX RCA ×1 |
| ANALOG INPUT | RCA ×1 |
| MAINS VOLTAGE | AC 110V / 60Hz |
| POWER CONSUMPTION | 35W |
| OPERATING TEMPREATURE | 0 to 35 degrees (Celsius) (less than 90% humidity, non condensing) |
| DIMENSIONS | 7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm |
| WEIGHT | 9.9 lbs / 4.5 kg |
| BATTERY | Size AA battery x2 (Alkaline battery, Rechargable , Magnesium Dry Cell) |
| BOX CONTENTS | 1. STAX SRM-D50 Electrostatic Amp/DAC |
WARRANTY AND MEDIA REVIEWS
1 Year Warranty
Don't sweat it, this STAX SRM-D50 comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about STAX's warranty in India.
"The Stax SRM-D50 is purpose-built and high performance. If you have the budget to spend on this kind of high-end audio, this is absolutely the way to be spending it."
